Why torbo?
The economic solution.
You can rely on our wet sand blasting machines to remove any contamination quickly and without damage to surfaces while at the same time reducing costs. Our customers are satisfied over the long term because they save on time and material and increase their long-term efficiency.
Our philosophy can be reduced to one very simple formula:
Less effort + less blast abrasive + lower costs = higher efficiency and higher customer satisfaction
The SoftLine models
Small but powerful!
The SoftLine machines are the smallest devices for the simple, effective and gentle cleaning of monuments and facades. They don’t need an extra air dryer, no extra water hose to the nozzle and no heavy or expensive nozzle. Thanks to the control system, the blasting media mixture (80% blasting abrasive and 20% water) and extra water is metered out irrespective of compressed air, so that you can adjust the parameters independently of each other.
- 60 l vessel
- 1/2″ Compressed air connection
- 2,8 m³ Compressed air max./minute
Our Softline XS is a specialist for all delicate work. It removes all kinds of dirt – even on highly sensitive surfaces such as natural stone monuments. The structure of the object remains completely intact and is not damaged.
- 60 l vessel
- 3/4″ Compressed air connection
- 4,0 m³ Compressed air max./Minute
The SoftLine S is the blasting device for simple, effective and gentle cleaning of monuments and facades. It does not require a separate air dryer, no extra water hose and no heavy or expensive jet nozzle.
torbo M to L
The specialists for all needs!
Challenges are their specialty. The torbos of the classes M and L have been specially developed for daily use and they are available in 2 versions and 2 vessel sizes each for you.
The M-version has been specially developed for gentle work, also cleans delicate surfaces thoroughly and leaves even brilliant results when other blasting devices have to give up a long time ago. The cleaning of facades, sandstone monuments, the use during restoration work or the removal of graffiti are just as much to its range of applications such as the careful historic preservation with receipt of the patina or the rays of ornaments on glass.
The specialty of the L-version is its diverse range of uses. The specially developed for the all-round demand system is characterized in daily use. The gentle removal of even stubborn encrustations of sensitive surfaces is just as much to its range of applications such as the removal of concrete slurry and layers of paint, or the use of fire restoration.
- 80 l vessel
- 1″ Compressed air connection
- 6,0 m³ Compressed air max./minute
The M-version has been specially developed for gentle work, also cleans delicate surfaces thoroughly and leaves even brilliant results when other blasting devices have to give up a long time ago. The cleaning of facades, sandstone monuments, the use during restoration work or the removal of graffiti are just as much to its range of applications such as the careful historic preservation with receipt of the patina or the rays of ornaments on glass.
- 120 l vessel
- 1 1/2″ Compressed air connection
- 10,0 m³ Compressed air max./minute
The specialty of the L-version is its diverse range of uses. The specially developed for the all-round demand system is characterized in daily use. The gentle removal of even stubborn encrustations of sensitive surfaces is just as much to its range of applications such as the removal of concrete slurry and layers of paint, or the use of fire restoration.
The XL models
May it be a little bit more…?
Devices of this class are characterized by a large vessel volume and therefore they only need 1 to 4 vessel fills in a day.
- 240 l vessel
- 2″ Compressed air connection
- 15,0 m³ Compressed air max./minute
Our XL-version has plenty of power for any remedial measure. The torbo system shows its strength with heavy inserts. With ease it cope the removal of concrete slurry, the removal of old paint and the deburring and descaling of metals, as well as the removal of oxidation layers on steel.
- 240 l vessel
- 2″ Compressed air connection
- Additional dosing for blasting media
The XLS version is our specialist for steel and concrete refurbishment. Wherever power is required, the torbo XLS is way ahead. Especially the ship refurbishment (Dry docks) have long trusted in the strength of our “Giant”. Of course you can get this machine with all the known increases: 320 l vessel, ATEX version or stainless steel cabinet.
torboCar AC30 to AC64
Mobile performance of the extra class
The torbocar models AC30 to AC64 with assembled torbo-unit plus compressor, plus large water tank, plus hose reel guarantee shortest set-up times and convincing handling.
- torbo M 80 installed
- 250 l water tank
- 40 m blasting hose on hose reel
The smallest model in the series of mobile turbo trailer systems. It has next to a 250 liter water tank and a hose reel for 40 m blasting hose a torbo M (compressed air connection: 3/4”) with 80 l vessel.
- torbo L 120 installed
- 250 l water tank
- 40 m blasting hose on hose reel
From gentle monuments up to the powerful cleaning – with this torboCar this is no problem! A torbo L (compressed air connection: 1 1/2”) with a 120 liter vessel, a 250 liter water tank and a hose reel for 40 m blasting hose are the features of this all-rounder.
- torbo XL 240 installed
- 360 l water tank
- 60 m blasting hose on hose reel
This torbocar is the right choice – especially for rough work! With a torbo XL (compressed air connection: 2 ”) equipped with a 240 l vessel (optionally with 320 l vessel), a 360 liter water tank and a hose reel for 60 m blast hose – this trailer is mainly used for rehabilitation work and it’s a mobile, powerful working tool.
The torboMate Crawler
Without effort at top speed to the target. The torboMate is the robot for steel beams of all vertical and horizontal steel surfaces.
- robot for steel blasting
- up to 72 m²/h Blasting capacity
- 160 cm Working width
He can 2 jet nozzles or a high pressure nozzle be up to 4,000 bar stocked (with an additional guide).
- 0,5 – 20 m/min Speed
- 45 kg Total weight
- Vertical a/o horizontal steel Application
The torboMate “crawler” is extremely mobile thanks to the magnetic impellers and the radio control and allows a high surface coverage.
Applications
For concrete renovation (and cleaning) it is all about one thing: power. The use of torbo in concrete renovation means blasting with maximum performance at a surprisingly low consumption of water and blasting media and a minimum of dust.
Your applications to use torbo for:
- cleaning of weathered concrete
- restoration of damaged concrete
- blasting of concrete slurry
- paint removal of concrete facades and bridges
- and much more.
Fires have a devastating effect for the affected buildings. In addition to the annihilation of design and architecture, fine soot particles and a pungent smell set firmly into the wall surfaces and limit the usability of buildings drastically.
A sensitive and dangerous task is the removal of asbestos. People and the environment must be protected in a special way while removing the highly toxic material.
Your applications to use torbo for:
- disposal of residues from fires
- surface treatment for further processing
- pinpoint use in tight spaces
- indoor and outdoor use (no dust formation)
- and much more
Brick facades combine different materials that respond to ablative procedures (such as sandblasting) different. To achieve the optimum in the cleaning of glazed brick on the one hand and joint material on the other hand, without damaging the masonry or the joints, torbo wet sandblasters are optimal.
Your applications to use torbo for:
- cleaning of burnt brick and joints simultaneously
- removes dirt on various surfaces
- removes dirt from exhaust gases but also graffiti
- suitable on sensitive sandstone facades
- and much more.
Historic buildings and works of art, sculptures and monuments are exposed to numerous stresses in the public sphere that threaten their survival. In addition to malicious damage, it is primarily contaminants from the air and clog the irretrievable cultural heritage.
Your applications to use torbo for:
- cleaning of weathered monuments
- removing graffiti on highly sensitive substrates
- removing heavy deposits
- preservation of the historical patina
- and much more.
Offshore means to be exposed to the elements in a extreme way. In corrosive seawater, objects sunlight, storm, water pressure, wave and salt without forfeiting functionality. This is permanent heavy duty work for the surfaces.
The maintenance of surfaces in the petrochemical industry is a particularly sensitive area of operation. The proximity to flammable and highly explosive materials makes a maximum of caution necessary.
Your applications to use torbo for:
- maintenance of oil platforms
- restoration of electricity and telecommunication masts
- cleaning of Pipe Lines
- ex-protected areas
- and much more.

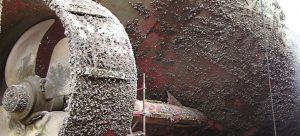

The steel hull of modern ships is permanently in contact with salt water, high pressure waves and salty air. To keep their transport function reliably, it must be repaired regularly.
Your applications to use torbo for:
- removing old paint on steel surfaces
- deburring metal
- removing oxidation layers
- smooth or roughen steel surfaces
- preparing the surface for protective coatings
- and much more.
In Germany the annually damage caused by graffiti on buildings and public transport amount to an estimated 250 to 500 million euros.
Your applications to use torbo for:
- removal of various paint (graffiti) on facades, sidewalks and transport (trams etc.)
- removing road markings
- cleaning of footpaths and squares, e. g. from chewing gum
- removing paint from clinker and other facades
- and much more.
Plastics and glass fiber (polyester) reinforced plastics may be cleaned with wet sandblasting of torbo gently and thoroughly.
Your applications to use torbo for:
- cleaning of the rotor blades of wind turbines
- work-up of ship and boat hulls
- removing osmosis filters
- rapid removal of old coatings
- preparation of surfaces for new paint
- and much more.
Solid wood is a living material that requires special care in order to preserve its beauty and functionality for many years. Coatings, impregnating agents and preservatives can help.
Your applications to use torbo for:
- cleaning of church pews and houses made of wood
- removing paint on historic boat types
- cleaning of terraces and boardwalks made of wood
- most gentle cleaning of delicate wood surfaces
- and much more.
For more information please visit http://www.torbo24.com/
