Maus Italia is a leader in its field

Maus Italia is a world leader in the manufacture of tools and machinery for the production and maintenance of heat exchangers, condensers and boilers.

What we offer to our customers ranges from an individual special mandrel to completely automatic machinery able to perform more operations, all of which are completely designed and directly manufactured by Maus Italia.

Tube expanders

Maus Italia is a company specialized in the production and marketing of tube expanders.
The R Series, produced exclusively by Maus Italia, stands out for its expansion range, reliability and performance.

Tube expanders are tools built with heat-treated alloy steels and they are characterized by their wear- and fatigue-resistance.
They are composed by four main parts: the cage, the mandrel, the rolls and the collar.
Tube expansion operation is a cold mechanical deformation process that achieves a tight seal between the tube and the tube sheet.

The tube expander, constructed with heat-treated alloy steels that are resistant to wear and tear, is composed of four main parts: the cage, the mandrel, the rollers and the bearing collar.

The tooling process begins by introducing the tube expander, with its mandrel fully retracted, into the tube until the collar comes into contact with the tubesheet. The mandrel is then brought into contact with the rollers which rotate due to friction and, by coming into contact with the tube, move the mandrel forward. The rollers, expanded by the advance of the mandrel, compress the tube until it comes into contact with the tubesheet hole and reduce its thickness.

Tube rolling is a cold mechanical deformation process which achieves a tight coupling between the tube and the tubesheet.

The process is achieved by the expansion of the tube and a reduction in the thickness of the wall against the surface of the tubesheet hole, thanks to a special tool: the tube expander.

Selecting a tube expander is subject to knowing a number of technical parameters: the external diameter of the tube, the thickness of the tube, the length of expansion or thickness of the tubesheet and finally, the characteristics of the material to be rolled.

Tube rolling is rooted in the industrial England of the 1800s when the increase in the consumption of energy and large investments in industry and production created the need to build bigger and more diverse heat exchangers.

It is in this context that, at the end of the 1950s, Franco Agostino seized the opportunity given to him by the elderly German Albert Otto to learn the art of building tube expanders. Then, thanks to his indomitable spirit and perseverance, Agostino started up the small Italian factory that would, several years later, become Maus Italia. Today Maus Italia has achieved levels of excellence and is a world leader.

R Series tube expanders

The R Series is a complete range of tube expanders exclusively designed and manufactured by Maus Italia for the rolling of tubes in heat exchangers and boilers.

The R Series tube expanders with different adjustable depth are divided into two categories: R with 3 rollers and 5R with 5 rollers.

Thanks to their wide range, they can roll tubes from 6,35 mm up to 76,20 mm ( from 1/4″ up to 3″ ).

The R Series adjustable depth tube expanders have been designed for rolling tubes in heat exchangers and boilers.

They can be operated using Maus Italia electric or pneumatic torque-controlled rolling machines.

The 5R series tube expanders have five rollers to overcome the problems resulting from rolling thin-walled tubes, particularly those made of titanium.

These tube expanders, used for special rolling operations, use a mandrel with reduced tapering to reduce the residual stress in the expanded tubes.

Select your area of expertise to find the right tube expander

Adjustable depth tube expanders for small-diameter tubes from 1/4″ to 1/2″ ( from 6,35 to 12,70 mm ) with flush thrust collar.

Tube rolling is a cold mechanical deformation process which achieves a tight coupling between the tube and the tubesheet.

The process is achieved by the expansion of the tube and a reduction in the thickness of the wall against the surface of the tubesheet hole, thanks to a special tool: the tube expander.

Adjustable depth tube expanders with five rollers for tubes with thin walls and tubesheets of small/medium thickness from 3/8″ to 4″ with diameter from 5/8″ to 1.1/2″ ( from 15,90 to 38,10 mm ).

Adjustable depth tube expanders with five rollers for thin-walled tubes for thick tubesheets from 3/8″ to 8″ with diameter from 5/8″ to 1.1/2″ ( from 15,90 to 38,10 mm ).

Adjustable depth tube expanders for boilers, thick tubesheets and tubes with diameter from 1.3/4″ to 3″ ( from 44,45 to 76,20 mm ).

Multiple-pass tube expanders for thick tubesheets and tubes with diameter from 5/8″ to 1″ ( from 15,87 to 25,40 mm ), with quick release device and repositioning of the head allowing an easy and fast depth change of the tube expander to roll the entire thickness of the tubesheet without removing the tool from the tube.

Adjustable depth tube expanders for small thickness tubesheets and tubes with diameter from 1/2″ to 1.1/2″ ( from 12,70 to 38,10 mm ).

Long adjustable depth tube expanders for large thickness tubesheet and tubes with diameter from 1/2″ to 1.1/2″ ( from 12,70 to 38,10 mm ).

All tools available for tubesheet preparation.

Rotary distributor

Twist drills in HSS

WIDIA tungsten carbide inserts

Self-centring

Universal grooving tool

Universal grooving tool

Products for approaching of tubes and welding preparation

Hydraulically operated system for ( pre-welding expansion ) tube locking in the heat exchangers

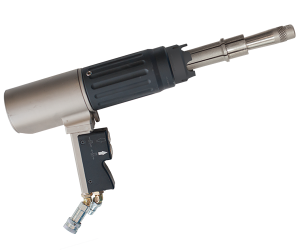

Innovative patented system for instant locking of tubes using clamp expansion.

Portable hydro-pneumatic system for contamination-free tube’s approaching
pre-welding )

Maus Italia has designed the innovative MaFix 400 system for locking tubes using the expansion of polymeric materials. This allows to be compliant with the stringent requirements relating the contamination of tubes caused by the materials of the used tools.

TIG orbital welding systems

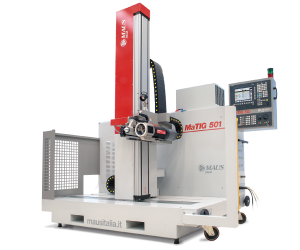

The MaTIG-501 system allows you to carry out fully automated tube-tubesheet TIG orbital welding with a considerable reduction in production times and a very high precision which is impossible to meet with the standard orbital welding machine due to the stability and the perfect positioning that only a CNC machine can grant.

Tube rolling products

For mechanical tube rolling, as well as a vast range of tube expanders, Maus Italia offers portable semi-automatic electric, pneumatic and hydraulic systems, and fully automated CNC automation systems.

Portable tube rolling

Semi-automatic tube rolling

CNC Automatic tube rolling

Tube expanders

Hydraulic expansion finds its best application in the expansion of tube bundle tubes welded to the tube-sheet. The tubes are expanded up to be in contact with the tube-sheet holes. The speed of its “single pass” execution, especially for expansion lengths exceeding 100 mm ( 4″ ), replaces the traditional tube rolling.

Check out below our ultra high pressure hydraulic systems for the expansion of tubes in heat exchangers with a minimum internal diameter of 7.00mm ( 0.276″ ) and our exclusive hi-tech model, the Hydrex 5003 S, for the controlled positioning of the tubes before welding ( tack expansion ) and hydraulic anchoring device of the probe during the expansion phase.

Products for tube end facing

This completely automatic end facing system offered by Maus Italia can be used for the removal of excess material as well as for welding preparation.

The unique automatic end facing process of the automatic CNC MA series machines incorporates an efficient automatic compensation system for the deformation of the tubesheet ( “Zero setting” ).

Hydraulic tube cutter for single cut of tubes with long protrusion

Kattex LTP

Innovative patented system for the instant cutting of tubes with long protrusion

Tubend tools specifically for the end facing of tubes

F/796 – F/751R – F/753 – MBOS 16-2 – MOF

Complete range of tools for the cutting and removal of stubs from the ends of tubes in tube bundle heat exchangers.

Products for tube bundle insertion

BundleIN XT60

This piece of equipment, attached to a bridge crane, quickly and safely solves the problems faced when inserting the heavy tube bundle inside the shell.

Mef ShopIN

The MefShopIN is a self-contained machine which, without the aid of an overhead crane, quickly, properly and safely solves the problem of insertion and extraction.

Products for the extraction and transportation of tube bundles

Check out in this section the solutions designed and created by Maus Italia for the aerial extraction of tube bundles.

Check out in this section the solutions designed and created by Maus Italia for mobile extraction and handling of tube bundles.

Remote-controlled fixed puller for the extraction and lifting of tube bundles.

Completely independent tube bundle puller for assembly on trucks.

Self-positioning transporter for “on-site” heat exchangers movement.

Products for cutting tubes and tube bundles

BundleCut

The standard model is for tubesheets with a diameter up to 2000 mm ( 78″ ), also available the special version that can cut tube sheet diameters up to 3000 mm ( 118″ ).

Kattex

Innovative patented incising/cutting tool
9 Seconds for each cut
Clean cut without shaving
Particularly recommended for heat exchangers.

Kattex

Innovative patented incising/cutting tool
9 Seconds for each cut
Clean cut without shaving
Particularly recommended for heat exchangers.

F/794

Motorised tube cutter for internal cutting of individual tubes.
Adjustable depth from 50.8 to 152,4 mm ( from 2″ to 6″ ) also available in the L series which can cut up to 304,8 mm ( 12″ ) in depth.

F/790

Manual tube cutter, adjustable depth from 50,8 a 152,4 mm ( da 2″ a 6″ ). The F/790 has been designed for manual use with a spanner.

Products for stub and tube extraction

Grippul

Designed and manufactured for rapid extraction of stubs from the tubesheet.

Runpul

Automated hydraulic tube puller for the continuous high-speed extraction of tubes and suitable for large-scale maintenance operations.

Onlypul

Hydraulic puller for continuous semi-automatic tube extraction.

TP

Complete range of hydraulic power units able to meet a range of requirements according to the type of use, from replacement of a single tube to the most demanding of maintenance operations.

Cheaptool

Complete system of Maus Italia tools and products for cheap manual maintenance of heat exchanger tubes in oil refineries, condensers and boilers.

Products for tube bundle cleaning

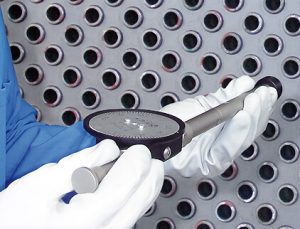

Instruments for measuring internal diameters

Products for production

For the production of tube bundle heat exchangers

The high-quality of Maus Italia products is intended to ensure reliable operation and a long service life: from the simplest instrument, such as a cutting tool, up to our fully automatic work stations. Each detail has been scrupulously designed, assembled and tested following the highest safety standards; every single one of our products can meet all needs, even those application with the most difficult conditions.

Products for maintenance

For the maintenance of tube bundle heat exchangers

Maus Italia is a leader in the design and production of machines and tools of the highest quality for the maintenance of tube bundle heat exchangers. From this page, you can access all the machines offered by Maus Italia for the extraction and transportation of tube bundles, cleaning, cutting, the extraction and capping of tubes. All of our products incorporate cutting-edge technology to make all the operations necessary in cleaning and maintaining tube bundles efficient and functional. Aerial type, Self-positioning or truck-mounted bundle pullers, robots and pumps for external and internal high-pressure cleaning of the tube bundle, Cutting machines for tube bundles, and tools for incising and cutting tubes are just a few of the machines that Maus Italia offers manage efficiently all maintenance operations in any context.

Mechanical tube rolling

For mechanical tube rolling, as well as a vast range of tube expanders, Maus Italia offers portable semi-automatic electric, pneumatic and hydraulic systems, and fully automated CNC automation systems.
